MarineEquipment
RADAR
Model: FAR-22x8 (19" LCD)/FAR-23x8 (23.1" LCD or 27" wide LCD)
Model: FAR-15x8 (15" LCD)
The latest digital signal processing technology and highly receptive antenna enable the Radar series to detect targets and show echoes with crisp images on your monitor, whether the ships are moving fast around your vessel or located miles away.
ECDIS
Model: FMD-3200 (19" LCD)/FMD-3300 (23.1" LCD or 27" wide LCD)
Model: FMD-3100 (24" wide LCD)
Displays oÂŽcial Electronic Navigational Charts (ENC) S-57 Edition, Raster Navigational Chart (RNC).
A radar image, tracked targets and AIS data with the chart can be overlaid on the charts on ECDIS when conducting route planning and route monitoring. TCS certified.
CHART RADAR
Model: FAR-32x0 (19" LCD)/FAR-33x0 (23.1" LCD or 27" wide LCD)
Featuring total integration of Radar and ENC Display System, FURUNO Chart Radar series display the radar images together with ENC at the same time.
ECHO SOUNDER
Model: FE-800
The FE-800 displays the clearance below the ship in the dual frequency operation (50/200 kHz), when interfaced
with two transducers. The depth at the fore and aft positions can be displayed simultaneously.
GNSS
Model: GP-170
The GNSS navigator GP-170 is an ideal position sensor for radar, AIS, ECDIS, autopilot, echo sounder and other
navigation and communications equipment. Newly designed GPS chip and antenna unit deliver enhanced stability and precision in position fixing.
AIS
Model: FA-170
The FA-170 enhances the safety and e‚ciency in navigation by automatically exchanging navigational status and other safety-related information within the VHF coverage.
DOPPLER SONAR
Model: DS-60
The DS-60 is the SDME which outputs the information especially required for berthing and docking operation of vessels. It o”ers 3 display modes: 3-axis speed, berthing and NAV data. Independent STW and SOG sensors are required for 50,000 GT vessels. It offers 3 display modes: 3-axis speed, berthing and NAV data. Vessels over 50,000 GT are required to install Doppler sonar on board.
DOPPLER SPEED LOG
Model: DS-80
The DS-80 indicates speed and distance on a large illuminated LCD. The paired beam transmission of the DS-80 eliminates the effect of pitching and velocity correction for change of water temperature. Recommended for vessels over 500 GT. The paired beam transmission of the DS-80 eliminates effect of pitching, and velocity correction for change of water temperature.
SATELLITE SPEED LOG
Model: GS-100
The measurement capability at dead slow speed is vital for precise docking of large ships. The GS-100 is the SDME and offers speed accuracy of ±0.02 kn, which is of great help during berthing operations.
VDR S-VDR
Model: VR-7000/VR-7000S
The VR-7000/7000S record the navigation data and assist investigators in identifying the causes of maritime casualty as well as to use the data for future reference to further incident prevention.
BRIDGE NAVIGATION
WATCH ALARM SYSTEM
Model: BR-500
The BNWAS BR-500 monitors the watch officers’ awareness for early detection of emergency.
SATELLITE COMPASS
Model: SC-70/SC-130
The SC-70/130 are the latest satellite compasses and increase the accuracy of other instruments, such as
Radar, ECDIS, AIS, Doppler Sonar and Autopilots. The SC-70/130 surpass IMO standards regarding THD
and GPS.
REMOTE DISPLAY
Model: RD-20/RD-50
The RD-20/RD-50 display the data from onboard sensors. The displays are switched by the remote controller.
The display brilliance of all units connected can be centrally controlled from 1 dimmer controller.

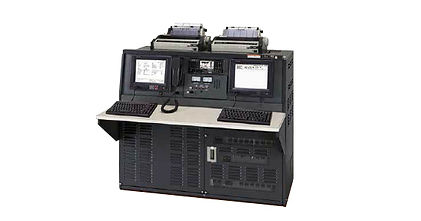

GMDSS
Model: RC-1800F2
The RC-1800F2 is a quality radio communications console. The RC-1800F2 contains all the necessary radio equipment for ships operating in the GMDSS sea areas A2-3.
VHF
Model: FM-8900S
The FM-8900S is designed to comply with the GMDSS carriage requirements. All the necessary facilities such as a Class A DSC modem and a CH 70 watch receiver are included in the transceiver unit.
MF/HF
Model: FS-1575/FS-2575/FS-5075
In addition to MF/HF marine telephony communication facility, the FS-1575/2575/5075 is equipped with DSC plus DSC Watch Receiver capability on all distress and safety frequencies in MF and HF bands. NBDP facility is optionally available.
NAVTEX
Model: NX-700A/NX-700B
The NX-700 can receive the NAVTEX messages on
518 kHz and 490 kHz or 4209.5 kHz at the same time.
MES
Model: FELCOM18
The FELCOM18 delivers full coverage of Inmarsat-C
services: EGC reception, Inmarsat E-mail, distress
message handling, polling, and data reporting.
SSAS
Model: FELCOM18/FELCOM19
The FELCOM18/19 with SSAS kit are the ship security alert systems using the Inmarsat-C system to transmit an
alert to a competent authority on shore when the ship is attacked by pirates, terrorists, etc. The FELCOM18/19 are both compatible with LRIT application.
ALARM UNIT
Model: IC-350
The IC-350 is the centralized control of distress alerting of connected GMDSS equipment. It is required for all passenger ships engaged in the international voyage to equip collective alerting controller system. All audio alarms can be halted with a single press of the “Mute Alarm” button.
WEATHER FAX
Model: FAX-30/FAX-410
The FAX-30 automatically receives high-quality weather maps and satellite images and displays them on an interfaced PC screen. The FAX-410 prints the images on a sheet of 10" paper by a thermal printing mechanism.
inmarsat
FLEET BROADBAND
Model: FELCOM250/FELCOM500
The FELCOM250 and FELCOM500 are FURUNO’s Inmarsat FleetBroadband terminals, which delivers ship-to-shore/ ship-to-ship broadband communication of up to 432 kbps (FELCOM500) together with voice
communication all at the same time by utilizing the latest generation Inmarsat I-4 satellites.
inmarsat
GLOBAL EXPRESS
Model: FV-110GX
The FV-110GX is an advanced Ka-band antenna terminal designed for Inmarsat
Global Express. The FV-110GX is easy to install with just one cable between
Above Deck Equipment (ADE) and Below Deck Equipment (BDE).
VSAT
Model: FV-110
The FV-110 is an advanced technology and reliable Ku-band antenna which is
compatible with various VSAT platforms. It is an installation hastle free VSAT
antenna with comes with high RF performance in 1m size.
